Automatic Voltage Adjustment No/Low Noise Silent Diesel Generator 5KW

Product Categories
Chongqing Kena Electromechanical Co., Ltd.
Contact Now

Automatic Voltage Adjustment No/Low Noise Silent Diesel Generator 5KW

Brand Name : HUAN NENG

Model Number : KN7000-J

Certification : CE, ISO 14001, ISO 9001

Place of Origin : Chongqing, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 20000 sets per month

Delivery Time : 7-15 work days

Packaging Details : Carton box packing for each set

Product name : AVR Voltage Automatic Adjustment Silent Diesel Generator

Feature : AVR Voltage Automatic Adjustment

Starting system : electric start

Phase : three/single

Feature2 : No/Low noise

Feature3 : Low energy consumption

Contact Now

AVR Voltage Automatic Adjustment Silent Diesel Generator

Application:

Diesel generator sets/low noise diesel generator sets conform to relevant national standards such as GB2820-90. Low noise diesel generator sets include low noise workstations, low noise automatic generator sets, low noise car power plants and low noise trailer power plants. Various design types. Low-noise diesel generator sets have the advantages of stable operation, reliable operation, low emissions and low fuel consumption.

Features:

1. Low running noise

A highly efficient combustion system ensures complete combustion, a large muffler reduces exhaust noise, and the engine's sound is dampened by a double-wall structure and liner absorber.

2. Low oil warning system

The generator will automatically stop before the oil level reaches dangerous levels. It can only be restarted after the proper oil level has been restored.

3. Strong power

All generators are powered by four-stroke diesel engines.

Technical parameters:

Model No. KN7000-J KN8000-J KN9000-J KN10000-J
Engine Model 186F 188F 192F 198F
Type Vertical single cylinder, 4-stroke, air-cooled, direct injection
Bore x Stroke 86x72mm 88x75mm 92x75mm 98x84mm
Displacement 410cc 456cc 499cc 633cc
Ignition system Compression ignition
Starting system Electric
Fuel loss rate ≤281g/kw.h ≤295g/kw.h ≤310g/kw.h ≤310g/kw.h
Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
Oil capacity 1.3 liters 1.5 liters 1.5 liters 1.65 liters
Generator Rated voltage 230V/400V
Rated frequency 50Hz
Max current 23.9A 28.2A 32.6A 39.1A
Rated output power 5.0KW 6.0KW 7.0KW 8.0KW
Max.output power 5.5KW 6.5KW 7.5KW 9.0KW
Phase Single/Three
Power factor 1.0/0.8 cos
Insulation class F grade
Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
Fuel indicator Yes
Oil alarm Yes
Battery capacity 12V-32AH Maintenance-free battery 12V-36AH Maintenance-free battery
Castor accessory Standard
Fuel capacity 20 liters 20 liters 20 liters 20 liters
Others Weight 158kg 160kg 165kg 216kg
Continous working time 8h
Size (L*W*H)

105*61*80

 102*67*93
Packing Standard carton
Noise 75 dBA/7m 65 dBA/7m

Model No. KN13000-J KN18000-J KN20000-J
Engine Model EV80/292 2V98 2V98
Type V-type twin/in-line twin cylinder, 4-stroke, air-cooled, direct injection
Bore x Stroke

86x72mm/

92x75mm

 98x88mm 98x88mm
Displacement 840cc/997cc 1326cc 1326cc
Ignition system Compression ignition
Starting system Electric
Fuel loss rate ≤270g/kw.h ≤250g/kw.h ≤250g/kw.h
Fuel type Diesel: 0(summer)-10(winter)-35(severe cold)
Oil capacity 1.7/2.6 liters 3.2 liters 3.2 liters
Generator Rated voltage 230V/400V
Rated frequency 50Hz
Rated output power 10KW 15KW 16KW
Max current 47.8A 65.2A 69.5A
Max.output power 11KW 16KW 18KW
Phase Single/Three
Insulation class F grade
Power factor 1.0/0.8 cos
Excitation way AVR voltage automatic adjustment
Accessory configuration Control panel Digital display table
Fuel indicator Yes
Oil protector Yes
Battery capacity 12V-36AH Maintenance-free battery 12V-45AH Maintenance-free battery
Castor accessory Standard
Fuel capacity 25 liters 30 liters
Others Weight 240kg 330kg 340kg
Continous working time 8h

Generator size

(L*W*H)(cm)

 116*66*90

130*80*103
Packing Standard carton
Noise 70 dBA/7m 78 dBA/7m

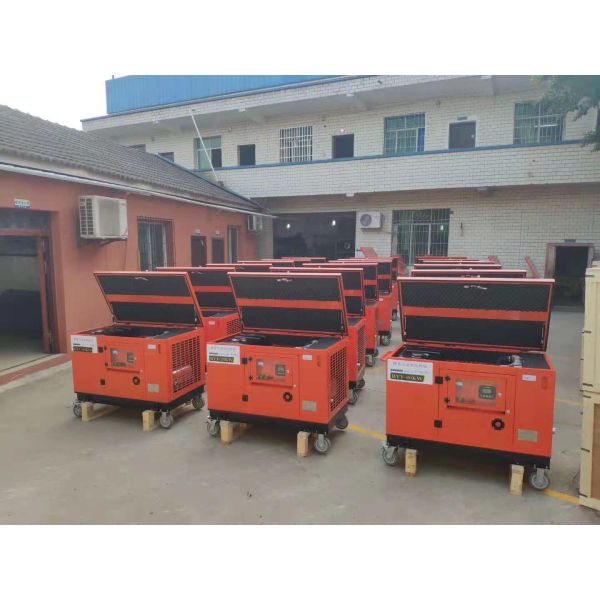

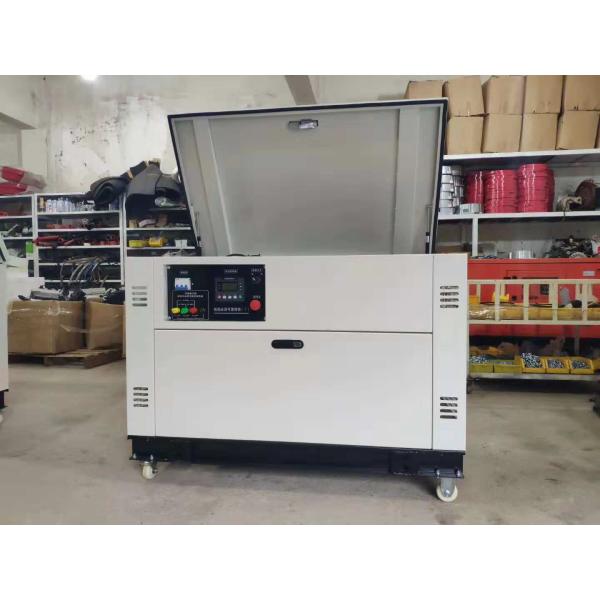

Product pictures:

Automatic Voltage Adjustment No/Low Noise Silent Diesel Generator 5KW

Automatic Voltage Adjustment No/Low Noise Silent Diesel Generator 5KW

Automatic Voltage Adjustment No/Low Noise Silent Diesel Generator 5KW

Automatic Voltage Adjustment No/Low Noise Silent Diesel Generator 5KWAutomatic Voltage Adjustment No/Low Noise Silent Diesel Generator 5KWAutomatic Voltage Adjustment No/Low Noise Silent Diesel Generator 5KWAutomatic Voltage Adjustment No/Low Noise Silent Diesel Generator 5KWAutomatic Voltage Adjustment No/Low Noise Silent Diesel Generator 5KWAutomatic Voltage Adjustment No/Low Noise Silent Diesel Generator 5KWAutomatic Voltage Adjustment No/Low Noise Silent Diesel Generator 5KWAutomatic Voltage Adjustment No/Low Noise Silent Diesel Generator 5KWAutomatic Voltage Adjustment No/Low Noise Silent Diesel Generator 5KW
