3200w Low Noise Portable Air Cooled Diesel Engine 173FB

Product Categories
Chongqing Kena Electromechanical Co., Ltd.
Contact Now

3200w Low Noise Portable Air Cooled Diesel Engine 173FB

Brand Name : HUAN NENG

Model Number : 173FB

Certification : CE, ISO 14001, ISO 9001

Place of Origin : Chongqing, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 20000 sets per month

Delivery Time : 7-15 work days

Packaging Details : Carton box packing for each set

Rated power : 3200w

Max power : 4300w

Color : (as customer's requirements)

Net weight : 0.028ton

Voltage : 220V/380V/ (as customer's requirments)

Start way : manual start/electric start

Contact Now

Air Cooled Low Noise Portable Direct Injection 173FB Diesel Engine

Single Cylinder Four Stroke Diesel Engine 173FB

Features:

1. Solid machine structure

Perfect design structure and rational choice of materials result in the HN series' high-quality air-cooled diesel engine. The design concept of the HN series diesel engine is reflected in its solid, lightweight construction, high-strength crankshaft components and simple mould structure.

2. Advanced noise reduction design

The uniquely designed high-efficiency exhaust significantly reduces exhaust noise. The large air filter minimises intake noise. High-strength cylinder block and cylinder head cover, as well as the rational design of the timing of the intake and exhaust valves, further reduce engine body noise.

Technical parameters:

Model HN173FB HN178F HN186FA
Type Single cylinder, four stroke, air cooled, vertical, direct injection
Combustion system Direct injection
The cylinder diameter x Trip 73x59 78x62 86x72
Displacement (L) 0.247 0.296 0.418
Compression ratio 20:1 20:1 19:1
Rated power/speed (Kw/rpm) 3.2/3000, 3.6/3600 3.7/3000, 4.0/3600 5.8/3000, 6.6/3600
Max power/speed (Hp/rpm) 4.3/3000, 4.8/3600 5.0/3000, 5.5/3600 7.9/3000, 9.0/3600
Rated speed 3000/3600 3000/3600 3000/3600
Start the way F: Manual start, E: electric start
Tank volume (L) 2.5 3.5 5.5
Lubricating oil capacity (L) 0.75 1.1 1.65
Fuel consumption (L/H) ≤1.2 ≤1.41 ≤2.15
Fuel brand Diesel: 0x10(summer), -10x10(winter)
Lubricating oil brand Sae10w30 (above CD level)
Dimensions (LxWxH) (mm) 332x376x415 385x420x450 420x440x495
The net weight (kg)

Manual start: 28

Electric start: 32

Manual start: 33

Electric start: 38

Manual start: 47

Electric start: 53

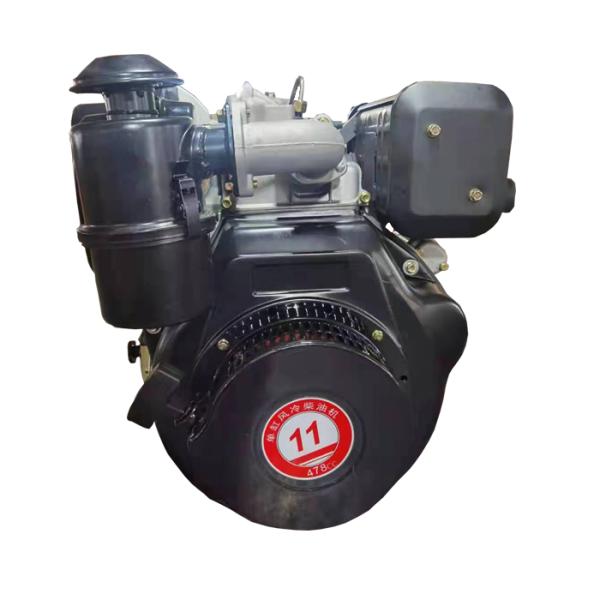

Product pictures:

3200w Low Noise Portable Air Cooled Diesel Engine 173FB

3200w Low Noise Portable Air Cooled Diesel Engine 173FB

3200w Low Noise Portable Air Cooled Diesel Engine 173FB

3200w Low Noise Portable Air Cooled Diesel Engine 173FB3200w Low Noise Portable Air Cooled Diesel Engine 173FB3200w Low Noise Portable Air Cooled Diesel Engine 173FB3200w Low Noise Portable Air Cooled Diesel Engine 173FB3200w Low Noise Portable Air Cooled Diesel Engine 173FB
