Name: Contactless Transistor Electronic Ignition 4 Stroke Gasoline Engine OHV
Brand: HUAN NENG
Price: 1 USD

Brand Name : HUAN NENG

Model Number : 170FP

Certification : CE, ISO 14001, ISO 9001

Place of Origin : Chongqing, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 20000 sets per month

Delivery Time : 7-15 work days

Packaging Details : Carton box packing for each set

product name : Contactless Transistor Electronic Ignition Gasoline Engine

Feature : Contactless Transistor Electronic Ignition

Power : 4kw

Material : bronze

Color : black(as customer's requirements)

Net weight : 18kg

Voltage : 220V/380V/415V (as customer's requirments)

Contact Now

Contactless Transistor Electronic Ignition Gasoline Engine

Contactless Transistor Electronic Ignition Gasoline Engine

Features:

1. Low running temperature prolongs the generator life.

2. Overhead valve design[OHV].

3. Easy and fast starting, smooth operation and low vibration.

4. Advanced design combustion chamber provide exceptional fuel efficiency and

consistent power.

Technical parameters:

Model	152F/P	154F/P	168FA/P	168FB/P	170F/P
Form	Single cylinder, four stroke, forced air cooling
Lgnition mode	Contactless transistor electronic ignition
Starting mode	Recovery manual start
Fuel consumption (g/kw.h)	≤450	≤420	≤395	≤395	≤374
Bore/stroke (mm)	52x46	54x38	68x45	68x45	70x45
Piston displacement (ml)	98	87	163	196	215
Maximum power/speed (kw/rpm)	1.15/3600	1.15/3600	3.2/3600	3.8/3600	4.0/3600
Maximum torgue (N.m/rpm)	2.5/2600	3.0/2600	8.8/2600	10.2/2600	12/2600
Net weight (kg)	8.8	10	18	18	18
Dimension[mm](LxWxH)	280x270x345	280x270x345	350x315x335	350x315x335	350x315x335

Model	173F/P	177F/P	182FA/P	188F/P	190F/P
Form	Single cylinder, four stroke, forced air cooling
Lgnition mode	Contactless transistor electronic ignition
Starting mode	Recovery manual start
Fuel consumption (g/kw.h)	≤374	≤374	≤374	≤374	≤374
Bore/stroke (mm)	52x46	54x38	68x45	68x45	70x45
Piston displacement (ml)	242	270	338	389	420
Maximum power/speed (kw/rpm)	4.2/3600	4.6/3600	6.1/3600	7.2/3600	8.1/3600
Maximum torgue (N.m/rpm)	13/2600	14/2600	19/2600	21/2600	23/2600
Net weight (kg)	25	25	31	31	32
Dimension[mm](LxWxH)	495x430x505	495x430x505	495x430x505	495x430x505	495x430x505

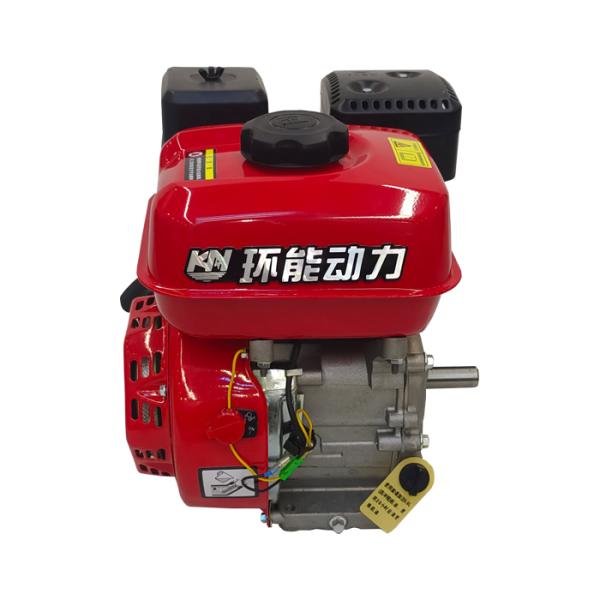

Product pictures:

Contactless Transistor Electronic Ignition 4 Stroke Gasoline Engine OHV
