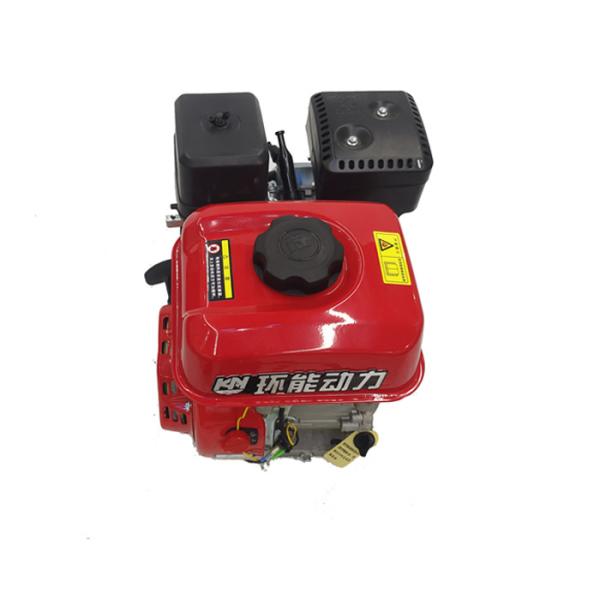

3.2KW Single Cylinder Four Stroke Petrol Engine ISO9001 3C

Product Categories
Chongqing Kena Electromechanical Co., Ltd.
Contact Now

3.2KW Single Cylinder Four Stroke Petrol Engine ISO9001 3C

Brand Name : HUAN NENG

Model Number : HP168FA/P

Certification : ISO9001,3c

Place of Origin : Chongqing, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 20000 sets per month

Delivery Time : 7-15 work days

Packaging Details : Carton box packing for each set

Warranty : 12 Months,1 Years，365days

Material : steel,iron or customerized

Packing : Standard Package

Usage : Machinery

Feature : Energy saving

Contact Now

Max 3.2KW Single-Cylinder Four-Stroke Energy Saving Gasoline Engine

4 stroke gasoline engine

Advantage,

1. Easy maintenance, low operating temperature, low operating cost, long engine life, high combustion efficiency, low fuel consumption, high torque and strong power.
2. We have a unique transmission technology with a well-designed gear transmission mechanism, which greatly reduces vibration and noise.
3. Perfect fuel injection technology, the fuel injection system we have developed ourselves can ensure that every drop of oil can exert its maximum effect, making the fuel consumption rate at the most ideal level.

The Details of this diesel engine

Model 152F/P 154F/P 168FA/P 168FB/P 170F/P 173F/P 177F/P 182FA/P 188F/P 190F/P
Form Single cylinder, four stroke, forced air cooling
Lgnilion mode Contactless transistor electronic ignition
Starting mode Recovery manual start
(g/kw-h) Fuel consumption (g/kW-h) w450 W420 <395 w395 w374 w374 W374 W374 W374 w374
(mm ) Bore / stroke (mm) 52x46 54x38 68x45 68x45 70x45 73x58 77x58 82x64 88x64 90x66
(ml) Piston displacement (ML) 98 87 163 196 215 242 270 338 389 420
(Kw/rpm) Maxirmim pov/er/speed 1.15/3600 1.15/3600 3.2/3600 3.8/3600 4.0/3600 4.2/3600 4.6/3600 6.1/3600 7.2/3600 8.1/3600
(N-m/rpm) 2.5/2600 3.0/2600 8.8/2600 10.2/2600 12/2600 13/2600 14/2600 19/2500 21/2500 23/2500
Net weight (kg) 8.8 10 18 18 18 25 25 31 31 32
外形尺寸[mm] Boun^r^in^nsion [mm](L xWx H) 280x270x345 280x270x345 350x315x335 350x315x335 350x315x335 495x430x505 495x430x505 495x430x505 495x430x505 495x430x505

3.2KW Single Cylinder Four Stroke Petrol Engine ISO9001 3C3.2KW Single Cylinder Four Stroke Petrol Engine ISO9001 3C3.2KW Single Cylinder Four Stroke Petrol Engine ISO9001 3C

3.2KW Single Cylinder Four Stroke Petrol Engine ISO9001 3C
